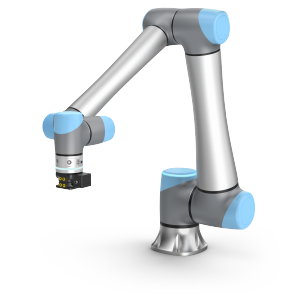

Collaborative Robot | WEC-E12M Cobot
- Model
- WEC-E12M
Item specifics
- Color(General)
- blue
- Loading Ability
- 12kg
- Arm Length
- 1200mm
- Repeated Positioning accuracy
- ±0.03mm
- Weight
- 39.5kg
- Protection grade
- Ip54
- Power Supply
- 220V
- Material:
- Aluminum alloy,ABS plastic
Review
Description

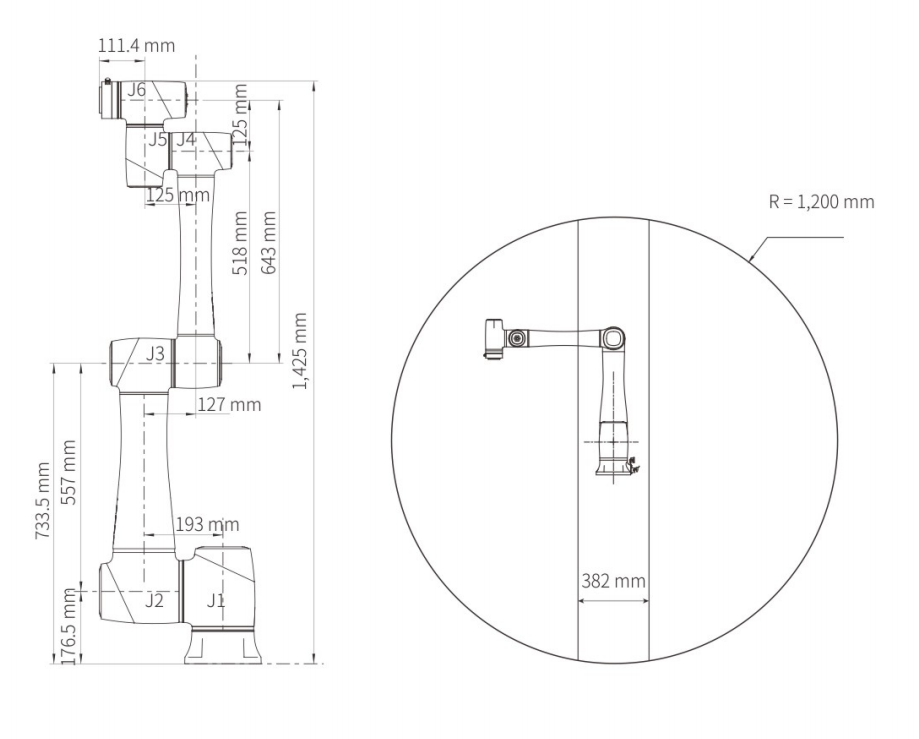

WEC-E12M Cobot Product And Size Drawings
Cobot Product Parademeters
| Model: | WEC-E12M | |||
| Weight: | 39.5kg | |||
| Maximun load: | 12kg | |||
| Working radius: | 1200mm | |||
Maximum linear speed: | 2m/s | |||
Joint range of motion: | J3：±160° (other joints ±360°) | |||
Maximum joint speed: | J1/J2:(180°/s) J3:(223°/s) J4/J5:(223°/s) | |||
Terminal IO: | DI(2 channels)/DO(2 channels)/AI(2 channels multiplexed with RS485) | |||
Repeated positioning accuracy: | ±0.03mm | |||
IP level: | ±Ip54 | |||
Temperature range： | 0~50°C | |||
Typical power consumption： | 350W | |||
Installation method： | any Angle | |||
The length of the cable from the main body to the electrical cabinet： | 5m | |||
Material： | Aluminum alloy,ABS plastic | |||

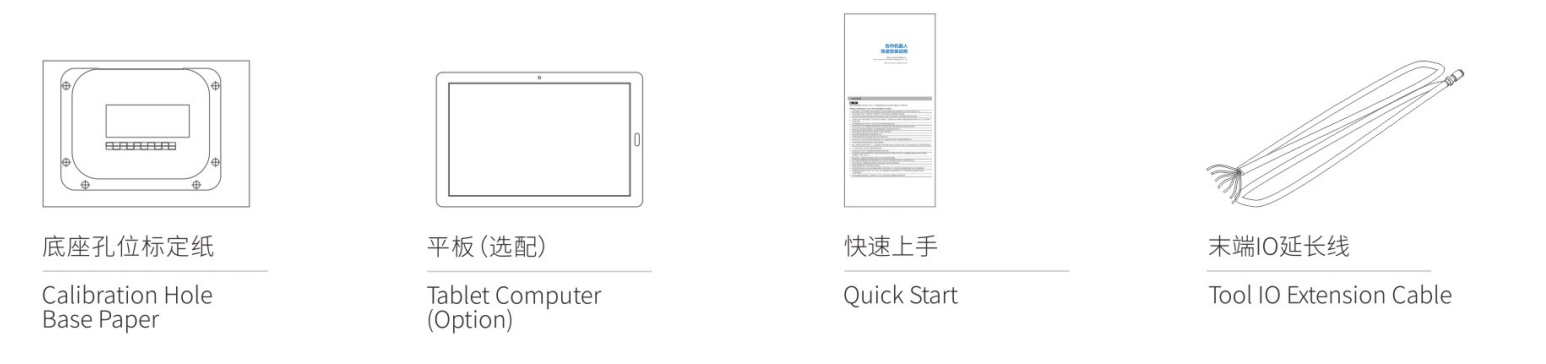

Cobot Shipping List
Cobot FAQ
How to choose the right Cobot?
The following factors should be considered when choosing the cobot:
Working scenarios: Robots of different specifications and models are suitable for different working scenarios, such as welding, palletizing, spraying, injection molding, die-casting, stamping, CNC lathes, grinding and quality testing, etc.
Load capacity: The load range of the robot covers 1 to 500 kilograms. For non-standard automated equipment, structural strength design and mechanical calculation will be carried out based on the size and weight of the workpiece.
Positioning accuracy: The repeat positioning accuracy of the robot can reach ±0.01-±0.5mm. The specific accuracy parameters depend on the specific production process requirements you provide.
Arm span range: The arm span range of the robot covers 600-3000mm, suitable for various scenarios.
If you are not sure how to choose the right robot, please feel free to contact our technical team at any time. We will provide professional advice based on your application scenarios and production needs.
What is the minimum order quantity (MOQ) for Cobot?
The minimum order quantity (MOQ) is 1 piece. Whether it is standard products of robots and mechanical hands or customized non-standard automated equipment, the minimum order quantity is one piece. Every cooperation is an opportunity to establish a long-term partnership. Even for small orders, we will spare no effort. RBTC looks forward to expanding from small to large and becoming your reliable partner.
Do you offer customized Cobot services?
We offer personalized customization options to meet specific requirements in application scenarios:
Customized robot solutions: Based on your production needs, we provide customized robot solutions.
Non-standard customization: Design and customize non-standard automated equipment according to your needs to meet application requirements.
Do you provide robot Cobot technical training? What does the training content include?
We offer flexible and diverse technical training services to our clients, supporting both online and offline modes:
Online training: Relying on remote communication technology, teaching is conducted through instant messaging software, video conferencing and other tools, breaking geographical restrictions and making it convenient for customers to learn at any time.
Offline training: We can provide on-site training services abroad based on customer needs, or invite trainees to our company's professional training venues for learning. We support systematic training throughout the entire process, covering core knowledge such as equipment operation norms, programming and debugging skills, basic maintenance and care, fault diagnosis and elimination. The training method adopts a combination of theoretical explanations and practical exercises to ensure that trainees master the skills solidly. In addition, to ensure that trainees can focus on their studies, we will also properly arrange accommodation and meals for them during the company's training period, so they have no worries.
How long is the warranty period for a Cobot? What services are provided during the warranty period?
Our products come with a one-year warranty service. During the warranty period, for non-human-caused damaged parts, we will provide replacement accessories free of charge.
What is your delivery time?
For existing products, they will be shipped within 7-15 days after payment.
For customized products, the customization period is 30-90 days.
