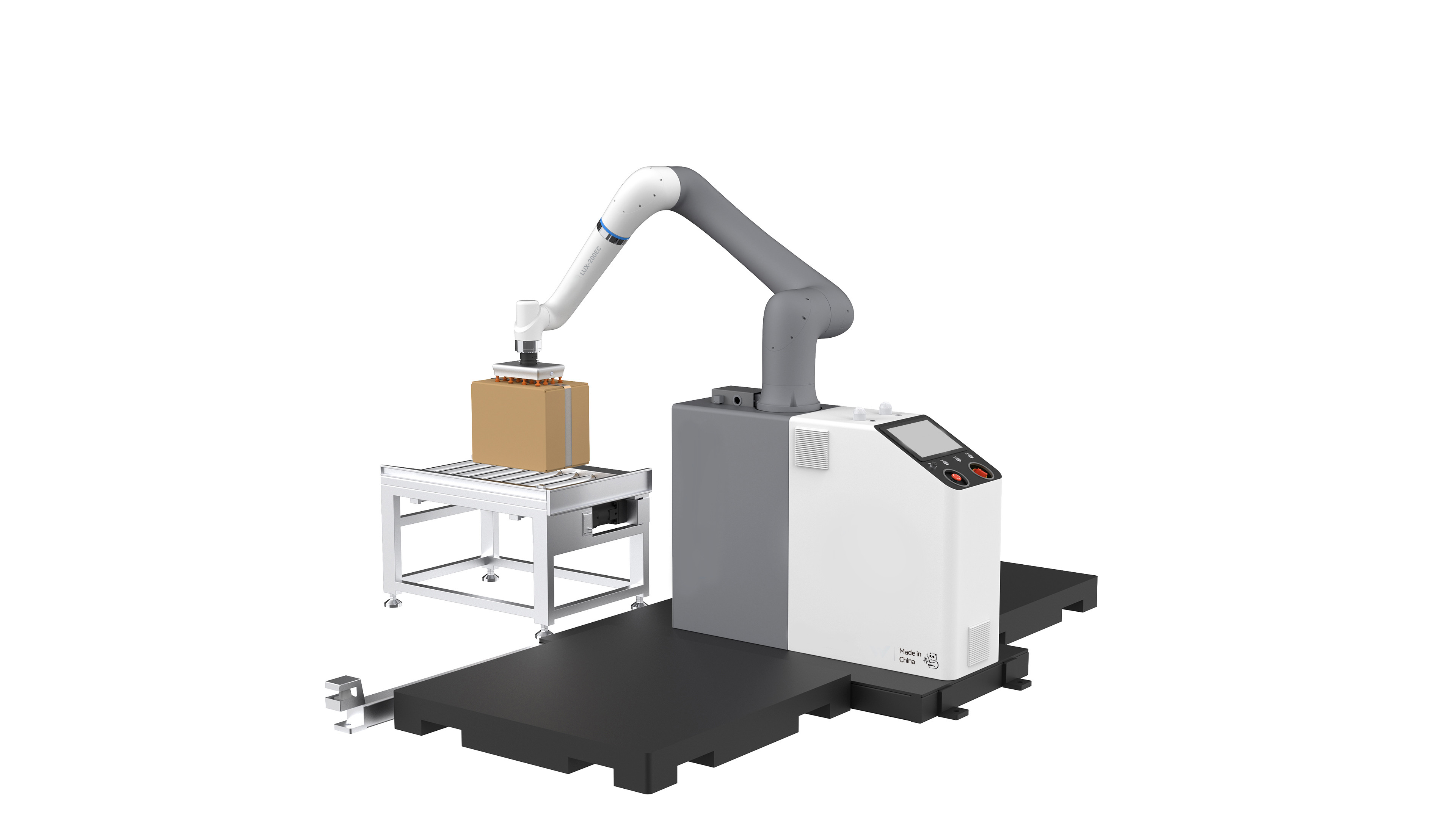

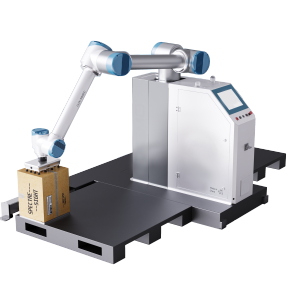

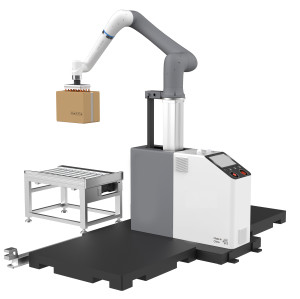

Palletizing Robot | LUX-200EC Palletizing Robot
- Model
- LUX-200EC
Item specifics
- Loading Ability
- 25kg
- Arm Length
- 1798mm
- Repeated Positioning accuracy
- ±0.05mm
- Weight
- 360kg
- Power Supply
- 220V
Review
Description
Palletizing Robot Main Specification
| Model: | LUX-200EC |
| Robot load: | 25kg |
| Working radius: | 1798mm |
Maximum pallet size： | 1200mmX1200mm |
Maximum palleting speed: | 9-13 boxs/min |
| Maximum joint velocity: | J1/2/3:120°/s J4/5:234°/s |
| Maximum palletizing height* (including pallets)： | 1650mm |
Repeat positioning accuracy： | ±0.05mm |
Communication mode： | TCP/IP |
IP level： | Robot body IP67,other IP32 |
Temperature range： | 0-50°C |
Maximum power consumption: | 2.5kw |
Box power supply: | AC 200-240V/50HZ |
Machine weight: | 360kg |
Floor space: | 1300mmX1667mm |
Palletizing Robot Advantage
Easy to operate
·Graphical programming,simple and efficient,no need to master the programming language
·Easy use of robots.
·Half an hour to master the programming method,1 hour to complete simple programming.
Flexible deployment
·Integrated design,light and flexible,small footprint.
·Workstation deployment new task setting is simple and fast,high efficiency.
Wide Applications
·Widely used in food,pharmaceutics,3C,daily chemistry,e-commerce and other industries.
Palletizing Robot FAQ
How to choose the right Palletizing Robot?
The following factors should be considered when choosing the palletizing robot:
Load capacity: The load range of the robot covers 1 to 500 kilograms. For non-standard automated equipment, structural strength design and mechanical calculation will be carried out based on the size and weight of the workpiece.
Positioning accuracy: The repeat positioning accuracy of the robot can reach ±0.01-±0.5mm. The specific accuracy parameters depend on the specific production process requirements you provide.
Arm span range: The arm span range of the robot covers 600-3000mm, suitable for various scenarios.
If you are not sure how to choose the right robot, please feel free to contact our technical team at any time. We will provide professional advice based on your application scenarios and production needs.
What is the minimum order quantity (MOQ) for Palletizing Robot?
The minimum order quantity (MOQ) is 1 piece. Whether it is standard products of robots and mechanical hands or customized non-standard automated equipment, the minimum order quantity is one piece. Every cooperation is an opportunity to establish a long-term partnership. Even for small orders, we will spare no effort. RBTC looks forward to expanding from small to large and becoming your reliable partner.
Do you offer customized Palletizing Robot services?
We offer personalized customization options to meet specific requirements in application scenarios:
Customized robot solutions: Based on your production needs, we provide customized robot solutions.
Non-standard customization: Design and customize non-standard automated equipment according to your needs to meet application requirements.
Do you provide Palletizing Robot technical training? What does the training content include?
We offer flexible and diverse technical training services to our clients, supporting both online and offline modes:
Online training: Relying on remote communication technology, teaching is conducted through instant messaging software, video conferencing and other tools, breaking geographical restrictions and making it convenient for customers to learn at any time.
Offline training: We can provide on-site training services abroad based on customer needs, or invite trainees to our company's professional training venues for learning. We support systematic training throughout the entire process, covering core knowledge such as equipment operation norms, programming and debugging skills, basic maintenance and care, fault diagnosis and elimination. The training method adopts a combination of theoretical explanations and practical exercises to ensure that trainees master the skills solidly. In addition, to ensure that trainees can focus on their studies, we will also properly arrange accommodation and meals for them during the company's training period, so they have no worries.
What are the product sizes compatible with palletizing robot？
Compatible with product sizes for palletizing robot：
Length(250-550)mmXwidth(200-500)mmXheight(150-400)mm,special dimensions need to fit the suction.What are the product surfaces compatible with palletizing robot?
Compatible with product surfaces for palletizing robot：
Ordinary carton surface, all kinds of smooth surface, all kinds of metal surface.
