E-O-A-T | NF series square Air Nipper for plastic shearing of 1-10mm
- Model

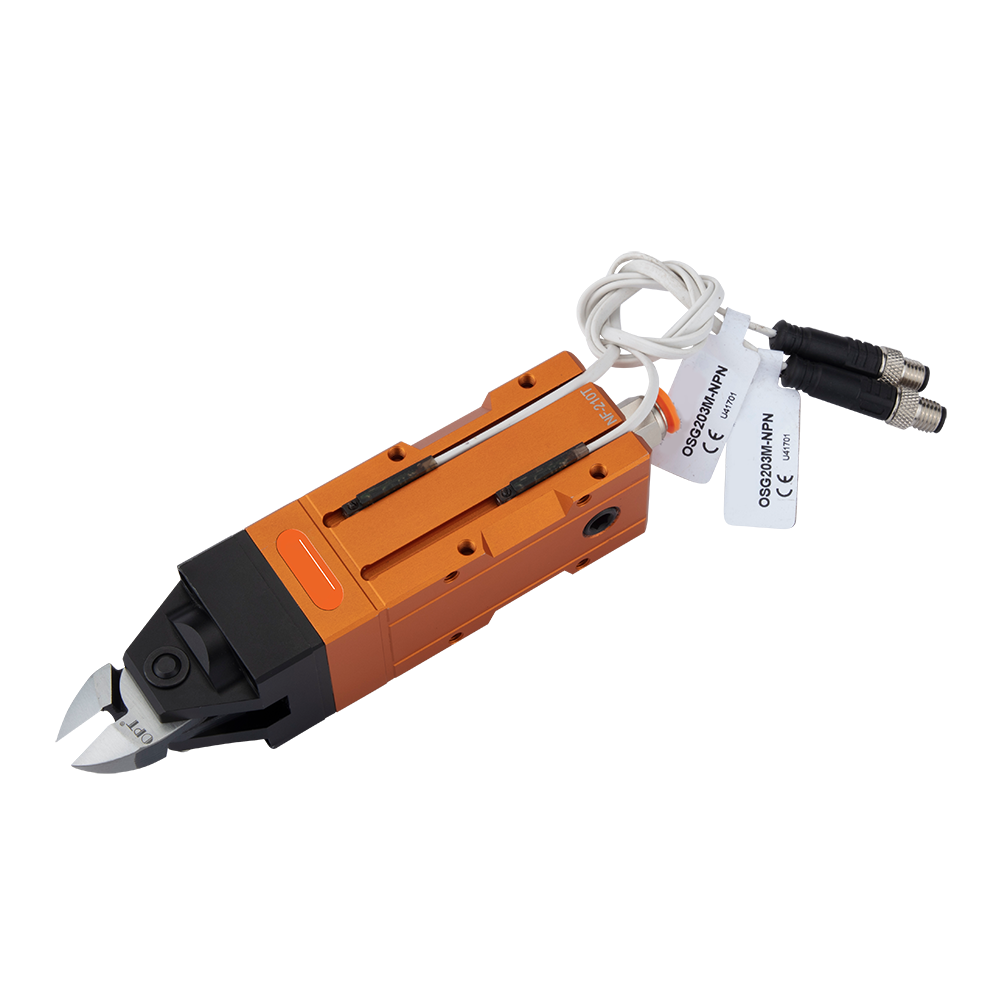

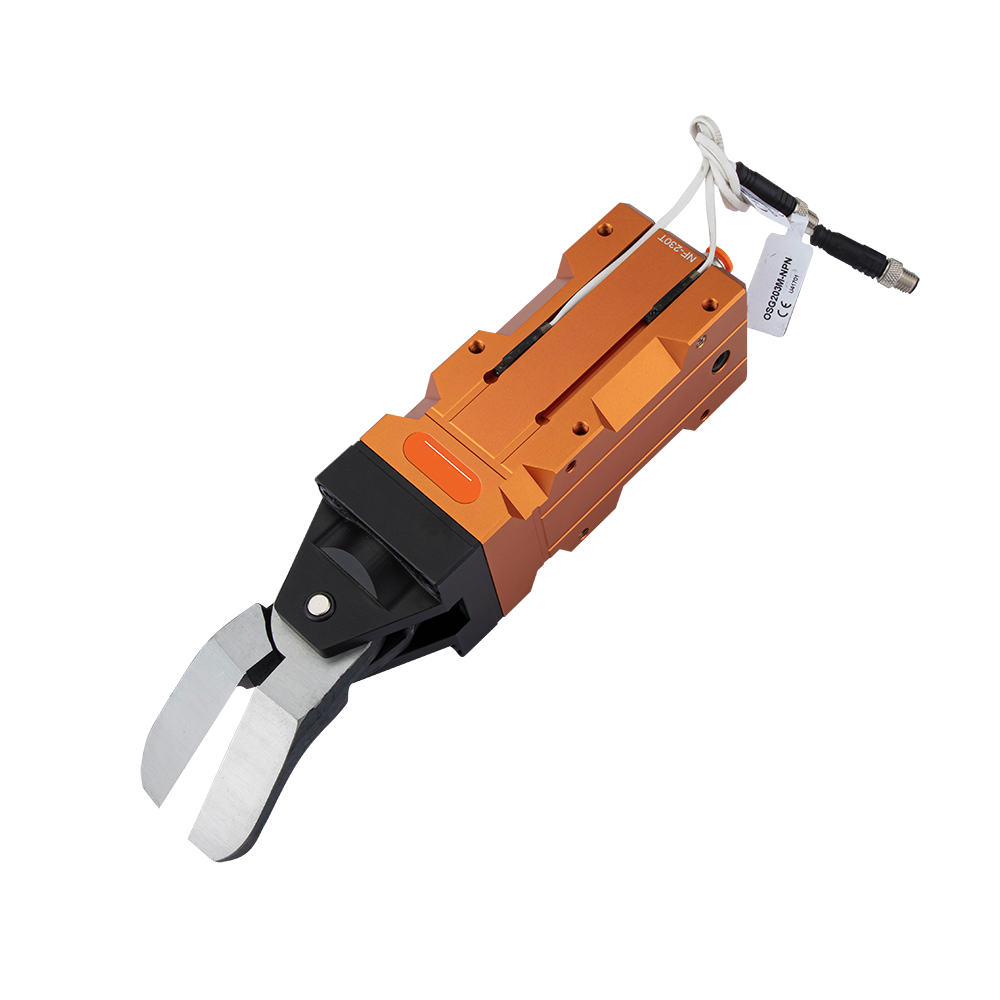

- NF series square Air Nipper
Review
Description
Air Nipper Product Dimensions And Parameters

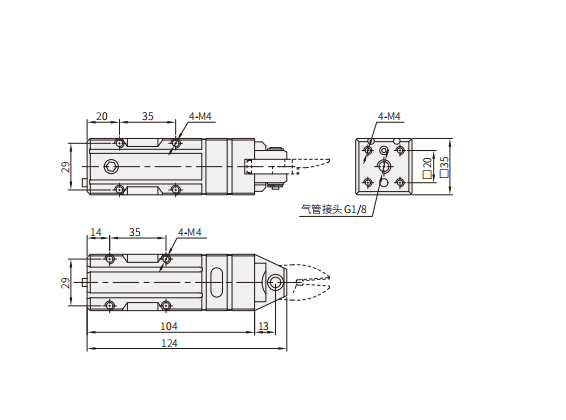

NF-210T Square Air Nipper

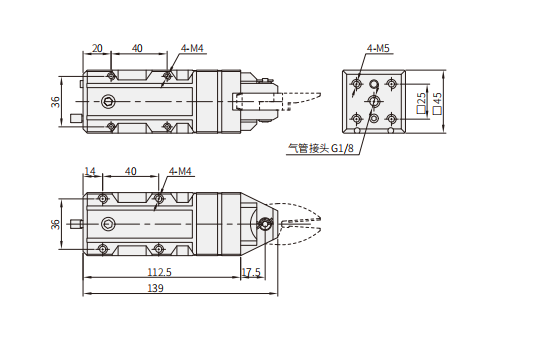

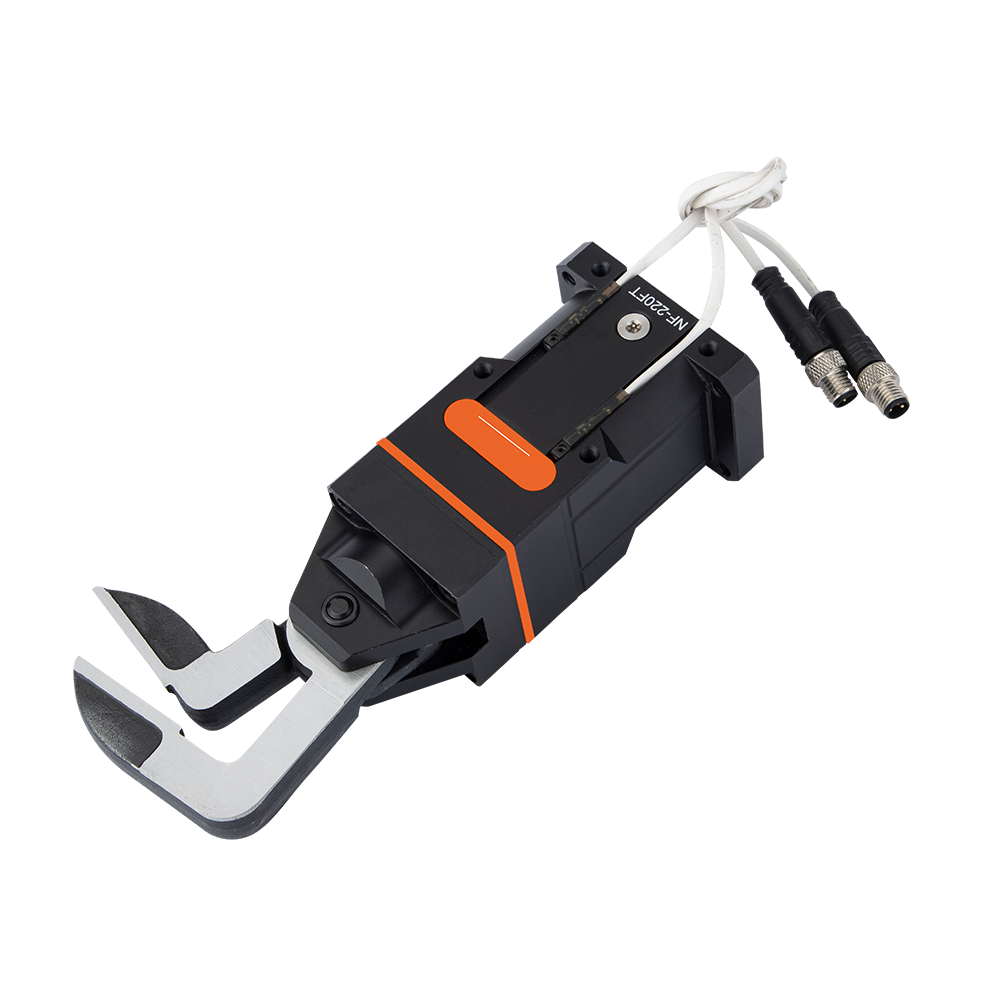

NF-220T Square Air Nipper

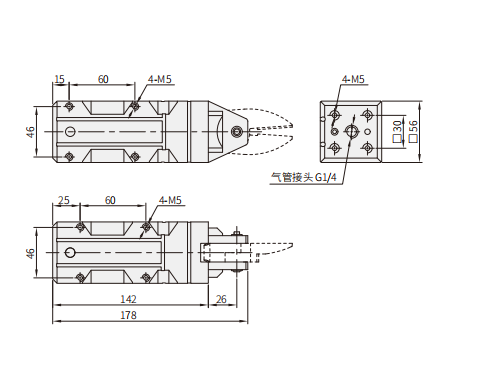

NF-230T Square Air Nipper
| Model: | NF-210T | NF-220T | NF-230T |
| Air inlet connection: | φ6mm | φ6mm | φ6mm |
Air wastage cycle: | 113 | 230 | 584 |
| Operation pressure: | 4-5kgf/cm² | 5-6kgf/cm² | 5-6kgf/cm² |
| Weight: | 205g | 371g | 673g |

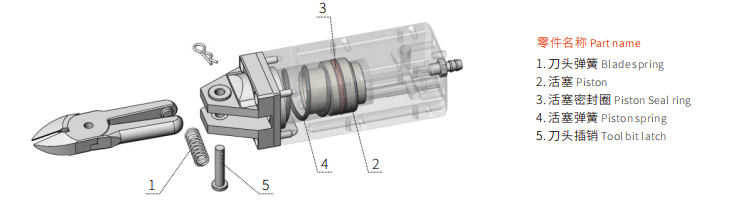

Air Nipper Consumable Spare Parts
