I.M.M Robot | BRTP Series Swing-Arm Servo Manipulator | Support OEM
- Model
- BRTP Series
Item specifics
- Control System
- HC Control System
- Color(General)
- white
- Loading Ability
- 2kg
- Repeated Positioning accuracy
- ±0.05mm
- Power Supply
- 220V
Review
Description
Swing-Arm Servo Manipulator Product Features
BRTP06ISSOPC SWING-ARM SERVO MANIPULATOR
BRTP06ISSOPC series appliesto all types of horizontal injection machines of 30T-150T for take-out products.The up and down arm is a single/double sectional type.The up and down action,drawing part,screwing out,and screwing in of them is driven by air pressure,with high speed and high efficiency.After installing this robot,productivity will be increased by 10-30% and will reduce the defective rate of products,ensure the safety of operators,reduce manpower and accurately control the output toreduce waste.
BRTP08WSS0PC SWING-ARM SERVO MANIPULATOR
BRTP08WSS0PC series appliesto all types of horizontal injection machines of 150T-250T for take-out products.The up and down arm is a single/double sectional type.The up and down action,drawing part,screwing out,and screwing in of them is driven by air pressure,with high speed and high efficiency.After installing this robot,productivity will be increased by 10-30% and will reduce the defective rate of products,ensure the safety of operators,reduce manpower and accurately control the output toreduce waste.

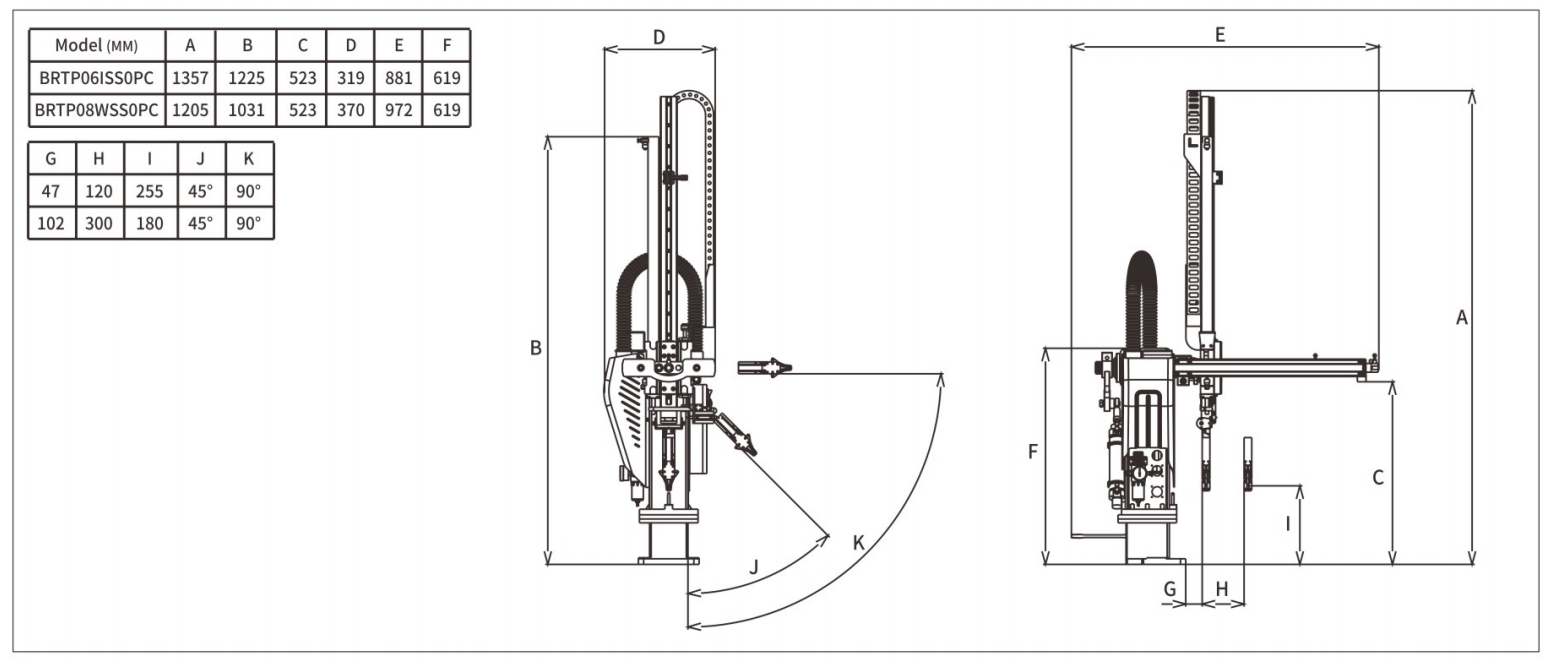

Swing-Arm Servo Manipulator Main Specification
| Model: | BRTP06ISSOPC | BRTP08WSS0PC | |||
| Recommended I.M.M: | 30T-150T | 150T-250T | |||
| Traverser Driven: | Driven by cylinder | Driven by cylinder | |||
| Model of EOAT: | Zero suctions Zero fixtures | Zero suctions Zero fixtures | |||
Traverse Stroke: | / | / | |||
Crosswise Stroke: | 120mm | 300mm | |||
Vertical Stroke: | 650mm | 850mm | |||
Max.loading: | 2kg | 2kg | |||
Dry Take Out Time: | 1.6s | 2s | |||
Dry Cycle Time: | 5.5s | 6s | |||
Swing Angle： | 30-90° | 30-90° | |||
Air Consumption（NL/cycle）: | 3 | 3 | |||
Repeatability: | ±0.05mm | ±0.05mm | |||
Power source: | 0.05kVA | 1.27kVA | |||
Weight: | 36kg | 60kg | |||
Application scenarios： | Injection molding industry | Injection molding industry |
No further notice if the specification and appearance are changed due to improvement and other reasons.
Thank you for your understanding.
Swing-Arm Servo Manipulator FAQ
How to choose the right Swing-arm servo manipulator?
The following factors should be considered when choosing the swing-arm servo manipulator:
Load capacity: The load range of the robot covers 1 to 500 kilograms. For non-standard automated equipment, structural strength design and mechanical calculation will be carried out based on the size and weight of the workpiece.
Positioning accuracy: The repeat positioning accuracy of the robot can reach ±0.01-±0.5mm. The specific accuracy parameters depend on the specific production process requirements you provide.
Arm span range: The arm span range of the robot covers 600-3000mm, suitable for various scenarios.
If you are not sure how to choose the right robot, please feel free to contact our technical team at any time. We will provide professional advice based on your application scenarios and production needs.
What is the minimum order quantity (MOQ) for Swing-arm servo manipulator?
The minimum order quantity (MOQ) is 1 piece. Whether it is standard products of robots and mechanical hands or customized non-standard automated equipment, the minimum order quantity is one piece. Every cooperation is an opportunity to establish a long-term partnership. Even for small orders, we will spare no effort. RBTC looks forward to expanding from small to large and becoming your reliable partner.
Do you offer customized Swing-arm servo manipulator services?
We offer personalized customization options to meet specific requirements in application scenarios:
Customized robot solutions: Based on your production needs, we provide customized robot solutions.
Non-standard customization: Design and customize non-standard automated equipment according to your needs to meet application requirements.
Do you provide Swing-arm servo manipulator technical training? What does the training content include?
We offer flexible and diverse technical training services to our clients, supporting both online and offline modes:
Online training: Relying on remote communication technology, teaching is conducted through instant messaging software, video conferencing and other tools, breaking geographical restrictions and making it convenient for customers to learn at any time.
Offline training: We can provide on-site training services abroad based on customer needs, or invite trainees to our company's professional training venues for learning. We support systematic training throughout the entire process, covering core knowledge such as equipment operation norms, programming and debugging skills, basic maintenance and care, fault diagnosis and elimination. The training method adopts a combination of theoretical explanations and practical exercises to ensure that trainees master the skills solidly. In addition, to ensure that trainees can focus on their studies, we will also properly arrange accommodation and meals for them during the company's training period, so they have no worries.
How long is the warranty period for a Swing-arm servo manipulator? What services are provided during the warranty period?
Our products come with a one-year warranty service. During the warranty period, for non-human-caused damaged parts, we will provide replacement accessories free of charge.
What is your delivery time?
For existing products, they will be shipped within 7-15 days after payment.
For customized products, the customization period is 30-90 days.
