Three-Axis Servo Manipulator Product Features

BRTNGO9WSS3P/F

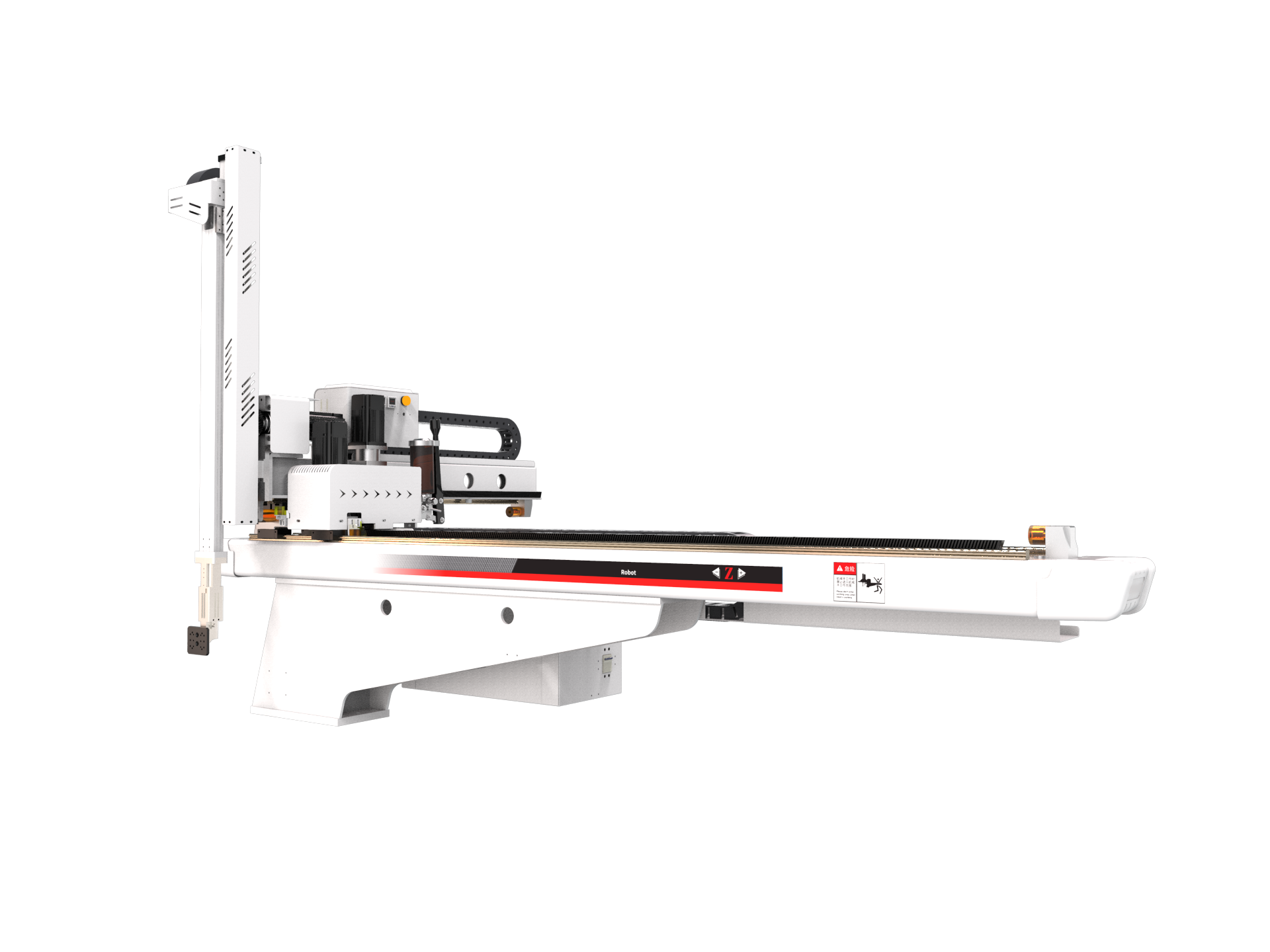

BRTNG09WSS3P/F  THREE-AXIS SERVO MANIPULATOR

BRTNG09WSS3P/F series apply to alltypes of horizontal injection machine ranges of 160T-380T for take-out products.The vertical arm is the telescopic type with the product arm.Three-axis AC servo drive saves time than similar models,accurate positioning,and short forming cycle.After installing the manipulator,the productivity will be increased by 10-30% and will educe the defective rate of products,ensure the safety of operators,reduce manpower and accurately control the output to reduce waste.

Three-axis driver and controller integrated system:fewer signal lines,long-distance communication,good expansion performance,strong anti-interference ability,high accuracy of repeated positioning,can simultaneously control multiple axes simple equipment maintenance,and low failure rate.

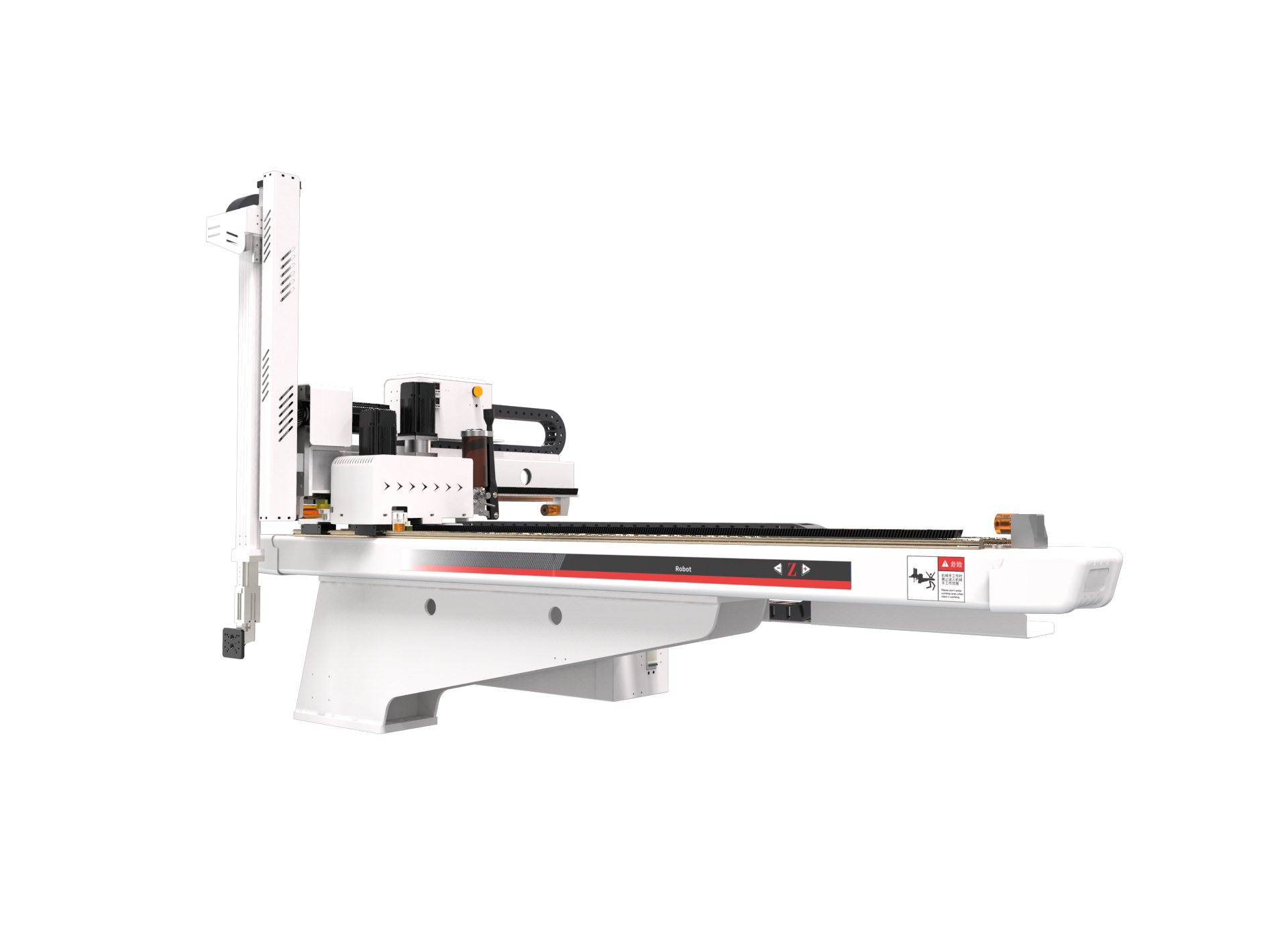

BRTNG11WSS3P/F  THREE-AXIS SERVO MANIPULATOR

BRTNG11WSS3P/F series apply to alltypes of horizontal injection machine ranges of 250T-480T for take-out products.The vertical arm is the telescopic type with the product arm.Three-axis AC servo drive saves time than similar models,accurate positioning,and short forming cycle.After installing the manipulator,the productivity will be increased by 10-30% and will educe the defective rate of products,ensure the safety of operators,reduce manpower and accurately control the output to reduce waste.

Three-axis driver and controller integrated system:fewer signal lines,long-distance communication,good expansion performance,strong anti-interference ability,high accuracy of repeated positioning,can simultaneously control multiple axes simple equipment maintenance,and low failure rate.

BRTNG11WSS3P/F

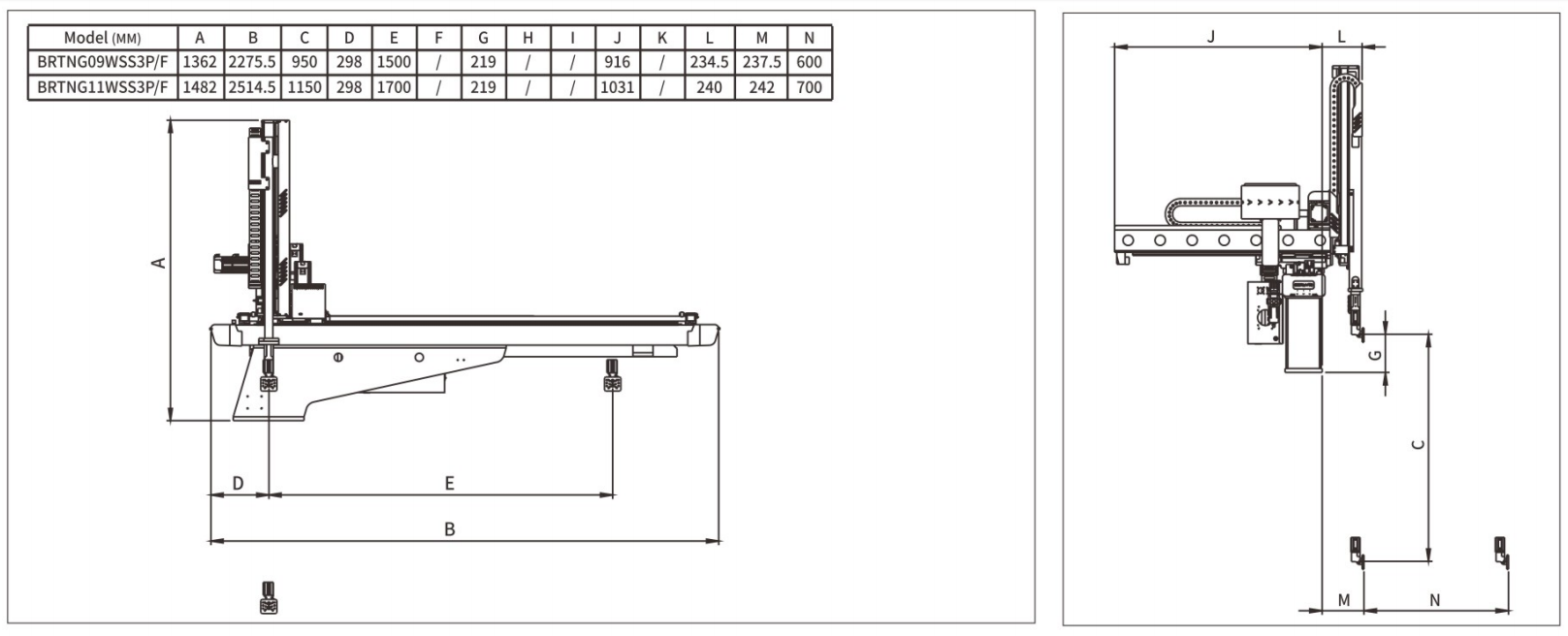

Three-Axis Servo Manipulator Main Specification

Model:
BRTNG09WSS3P/F
BRTNG11WSS3P/F
Recommended I.M.M:
160T-380T
250T-480T
Traverser Driven:
AC Servo motor
AC Servo motor
Model of EOAT:
Two suctions
Two fixtures
Two suctions
Two fixtures
Traverse Stroke:
1500mm
1700mm
Crosswise Stroke:
600mm
700mm
Vertical Stroke:
950mm
1150mm
Max.loading:
2kg
2kg
Dry Take Out Time:
0.68s
0.68s
Dry Cycle Time:
4.07s
4.07s
Air Consumption（NL/cycle）:
3.2
3.2
Repeatability:
±0.05mm
±0.05mm
Power source:
3.23kVA
5.38kVA
Weight:
300kg
300kg
Application scenarios：
Injection molding industry
Injection molding industry
0
No further notice if the specification and appearance are changed due to improvement and other reasons.
Thank you for your understanding.

Three-Axis Servo Manipulator FAQ

How to choose the right Three-Axis Servo manipulator?
The following factors should be considered when choosing the three-axis servo manipulator:
Load capacity: The load range of the robot covers 1 to 500 kilograms. For non-standard automated equipment, structural strength design and mechanical calculation will be carried out based on the size and weight of the workpiece.
Positioning accuracy: The repeat positioning accuracy of the robot can reach ±0.01-±0.5mm. The specific accuracy parameters depend on the specific production process requirements you provide.
Arm span range: The arm span range of the robot covers 600-3000mm, suitable for various scenarios.
If you are not sure how to choose the right robot, please feel free to contact our technical team at any time. We will provide professional advice based on your application scenarios and production needs.

What is the minimum order quantity (MOQ) for Three-Axis servo manipulator?
The minimum order quantity (MOQ) is 1 piece. Whether it is standard products of robots and mechanical hands or customized non-standard automated equipment, the minimum order quantity is one piece. Every cooperation is an opportunity to establish a long-term partnership. Even for small orders, we will spare no effort. RBTC looks forward to expanding from small to large and becoming your reliable partner.

Do you offer customized Three-Axis servo manipulator services?
We offer personalized customization options to meet specific requirements in application scenarios:
Customized robot solutions: Based on your production needs, we provide customized robot solutions.
Non-standard customization: Design and customize non-standard automated equipment according to your needs to meet application requirements.

Do you provide Three-Axis servo manipulator technical training?  What does the training content include?
We offer flexible and diverse technical training services to our clients, supporting both online and offline modes:
Online training: Relying on remote communication technology, teaching is conducted through instant messaging software, video conferencing and other tools, breaking geographical restrictions and making it convenient for customers to learn at any time.
Offline training: We can provide on-site training services abroad based on customer needs, or invite trainees to our company's professional training venues for learning. We support systematic training throughout the entire process, covering core knowledge such as equipment operation norms, programming and debugging skills, basic maintenance and care, fault diagnosis and elimination. The training method adopts a combination of theoretical explanations and practical exercises to ensure that trainees master the skills solidly. In addition, to ensure that trainees can focus on their studies, we will also properly arrange accommodation and meals for them during the company's training period, so they have no worries.
How long is the warranty period for a Three-Axis servo manipulator? What services are provided during the warranty period?
Our products come with a one-year warranty service. During the warranty period, for non-human-caused damaged parts, we will provide replacement accessories free of charge.
What is your delivery time?
For existing products, they will be shipped within 7-15 days after payment.
For customized products, the customization period is 30-90 days.
