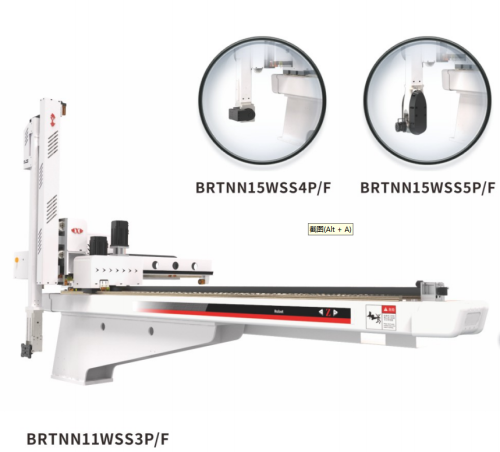

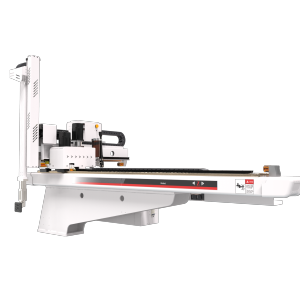

BRTNN11WSS3P/F THREE-AXIS SERVO MANIPULATOR

BRTNN11WSS3P/F series applies to all types of horizontal injection machine ranges of 250T-480T for take-out products. The vertical arm is the telescopic type with the product arm. Three/four axis AC servo drive,four axis with a C-servoaxis on the wrist,the rotation angle of the C-axis:90°,saves time than similar models,accurate positioning,and short forming cycle. After installing this robot,the productivity will be increased by 10-30% will educe the defective rate of products,ensure the safety of operators,reduce manpower and accurately control the output to reduce waste.

Three/four axis driver and controller integrated system:fewer signal lines,long-distance communication,good expansion performance,strong anti-interference ability,high accuracy of repeated positioning,can simultaneously control multiple axes,simple equipment maintenance,and low failure rate.

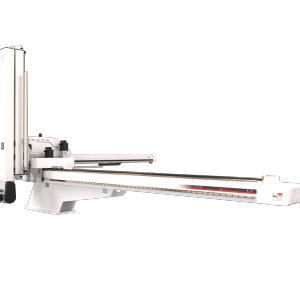

BRTNN15WSS4P/F FOUR-AXIS SERVO MANIPULATOR

BRTNN15WSS4P/F series applies to all types of horizontal injection machine ranges of 470T-800T for take-out products. The vertical arm is the telescopic type with the product arm. Three/four axis AC servo drive,four axis with a C-servoaxis on the wrist,the rotation angle of the C-axis:90°,saves time than similar models,accurate positioning,and short forming cycle. After installing this robot,the productivity will be increased by 10-30% will educe the defective rate of products,ensure the safety of operators,reduce manpower and accurately control the output to reduce waste.

Three/four axis driver and controller integrated system:fewer signal lines,long-distance communication,good expansion performance,strong anti-interference ability,high accuracy of repeated positioning,can simultaneously control multiple axes,simple equipment maintenance,and low failure rate.

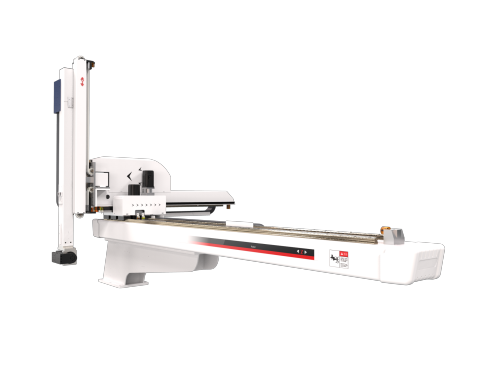

BRTNN15WSS5P/F FIVE-AXIS SERVO MANIPULATOR

BRTNN15WSS5P/F series applies to all types of horizontal injection machine ranges of 470T-800T for take-out products. The vertical arm is the telescopic type with the product arm. Three/four axis AC servo drive,four axis with a C-servoaxis on the wrist,the rotation angle of the C-axis:90°,saves time than similar models,accurate positioning,and short forming cycle. After installing this robot,the productivity will be increased by 10-30% will educe the defective rate of products,ensure the safety of operators,reduce manpower and accurately control the output to reduce waste.

Three/four axis driver and controller integrated system:fewer signal lines,long-distance communication,good expansion performance,strong anti-interference ability,high accuracy of repeated positioning,can simultaneously control multiple axes,simple equipment maintenance,and low failure rate.

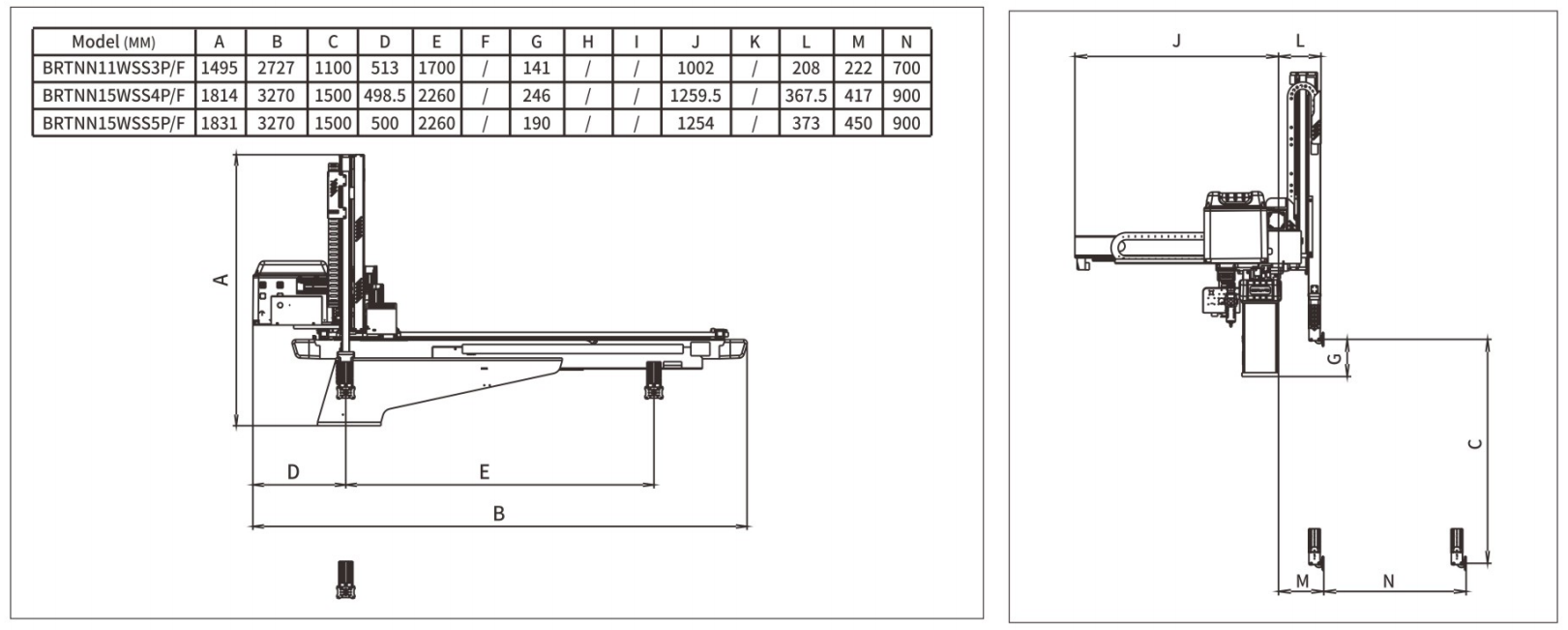

Three/Four/Five-Axis Servo Manipulator Main Specification

Model:	BRTNN11WSS3P/F	BRTNN15WSS4P/F	BRTNN15WSS5P/F
Recommended I.M.M:	250T-480T	470T-800T	470T-800T
Traverser Driven:	AC Servo motor	AC Servo motor	AC Servo motor
Model of EOAT:	Two suctions Two fixtures	Two suctions Two fixtures	Two suctions Two fixtures
Traverse Stroke:	1700mm	2260mm	2260mm
Crosswise Stroke:	700mm	900mm	900mm
Vertical Stroke:	1100mm	1500mm	1500mm
Max.loading:	10kg	15kg	15kg
Dry Take Out Time:	1.63s	2.74s	3.73s
Dry Cycle Time:	6.15s	9.03s	11.23s
Air Consumption（NL/cycle）:	3.2	3.2	3.2
Repeatability:	±0.05mm	±0.1mm	±0.1mm
Power source:	2.59kVA	3.18kVA	3.23kVA
Weight:	261kg	500kg	500kg
Application scenarios：	Injection molding industry	Injection molding industry	Injection molding industry

No further notice if the specification and appearance are changed due to improvement and other reasons.

Thank you for your understanding.
