Five-Axis Servo Manipulator Product Features

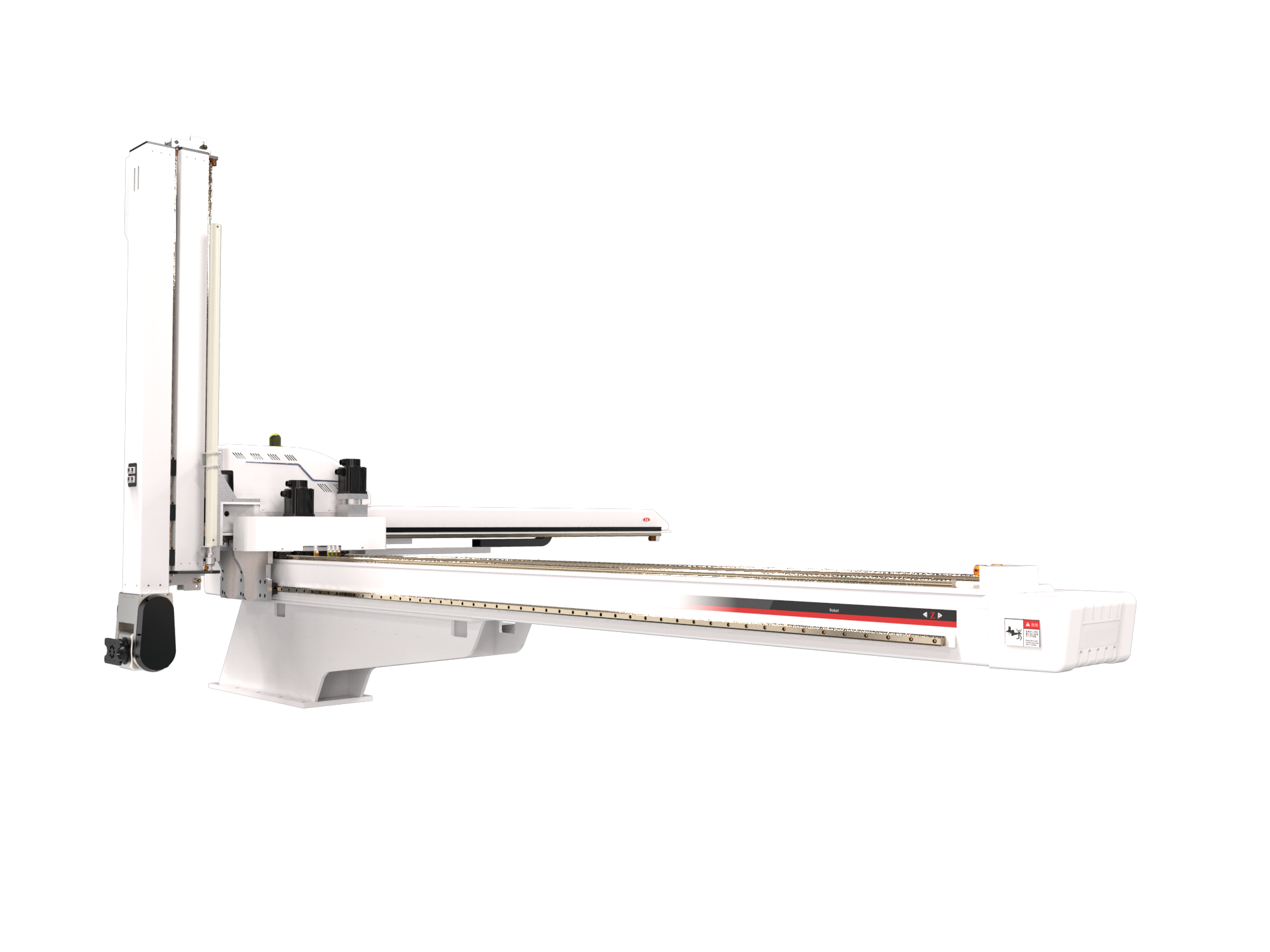

BRTN24WSS5PC/FC THREE-AXIS SERVO MANIPULATOR

BRTN24WSS5PC/FC is suitable forall types of 1300T-2100T plastic injection molding machines,five-axis AC servo drive,with AC servoaxis on the wrist,the rotation angle of the A-axis:360°,and the rotation angle of the C-axis:180°. It can adjust fixtures freely,with long service life,high accuracy,low failure rate,and simple maintenance. It is mainly used for quick injection or complex angle injection. Especially suitable for long shape products such as automotive products,washing machines,and household appliances.

Five-axis driver and controller integrated system:fewer signal lines,long-distance communication,good expansion performance,strong anti-interference ability,high accuracy of repeated positioning,can simultaneously control multiple axes,simple equipment maintenance,and low failure rate.

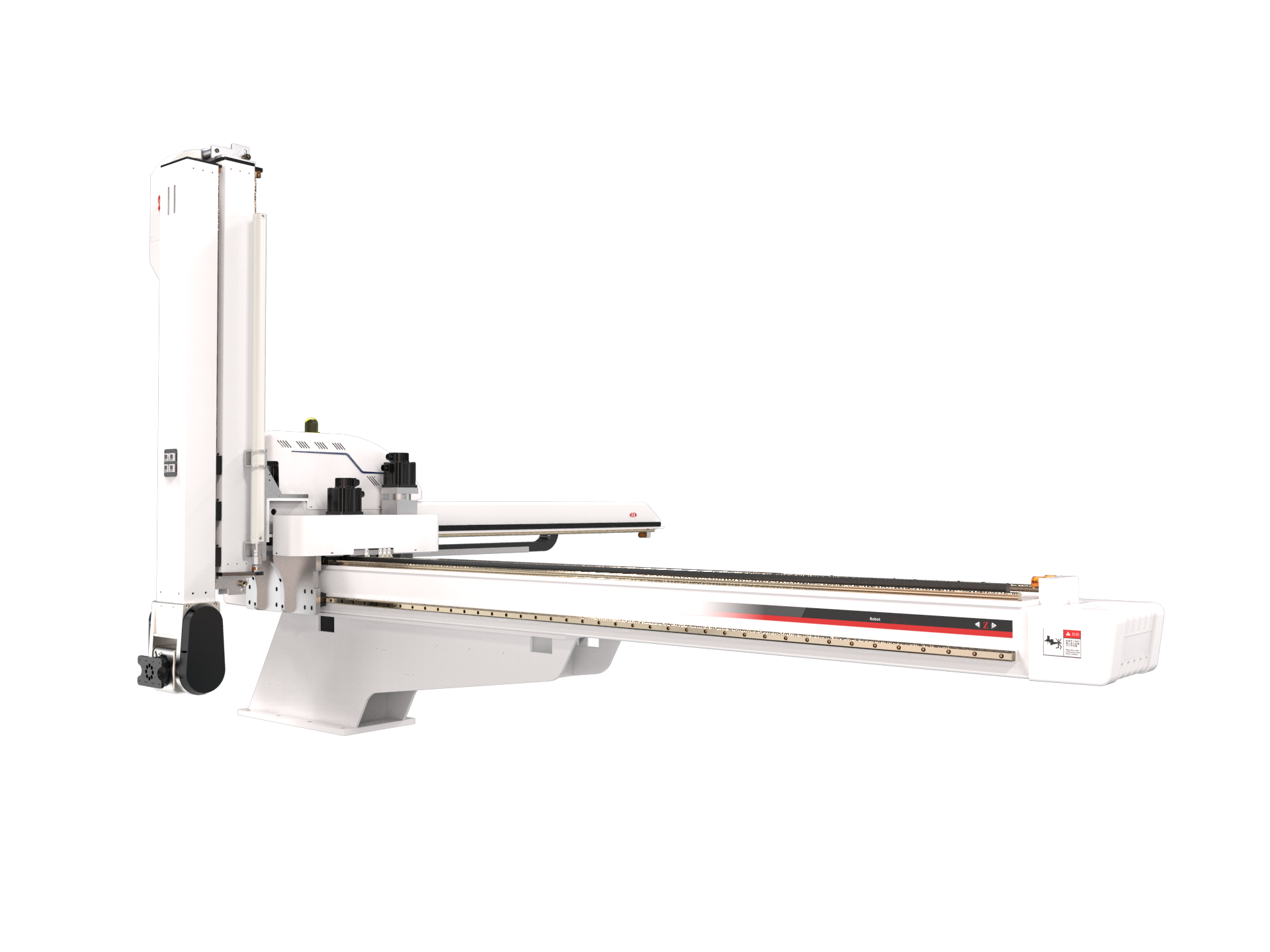

BRTN30WSS5PC/FC FOUR-AXIS SERVO MANIPULATOR

BRTN30WSS5PC/FC is suitable forall types of 2200T-4000T plastic injection molding machines,five-axis AC servo drive,with AC servoaxis on the wrist,the rotation angle of the A-axis:360°,and the rotation angle of the C-axis:180°. It can adjust fixtures freely,with long service life,high accuracy,low failure rate,and simple maintenance. It is mainly used for quick injection or complex angle injection. Especially suitable for long shape products such as automotive products,washing machines,and household appliances.

Five-axis driver and controller integrated system:fewer signal lines,long-distance communication,good expansion performance,strong anti-interference ability,high accuracy of repeated positioning,can simultaneously control multiple axes,simple equipment maintenance,and low failure rate.

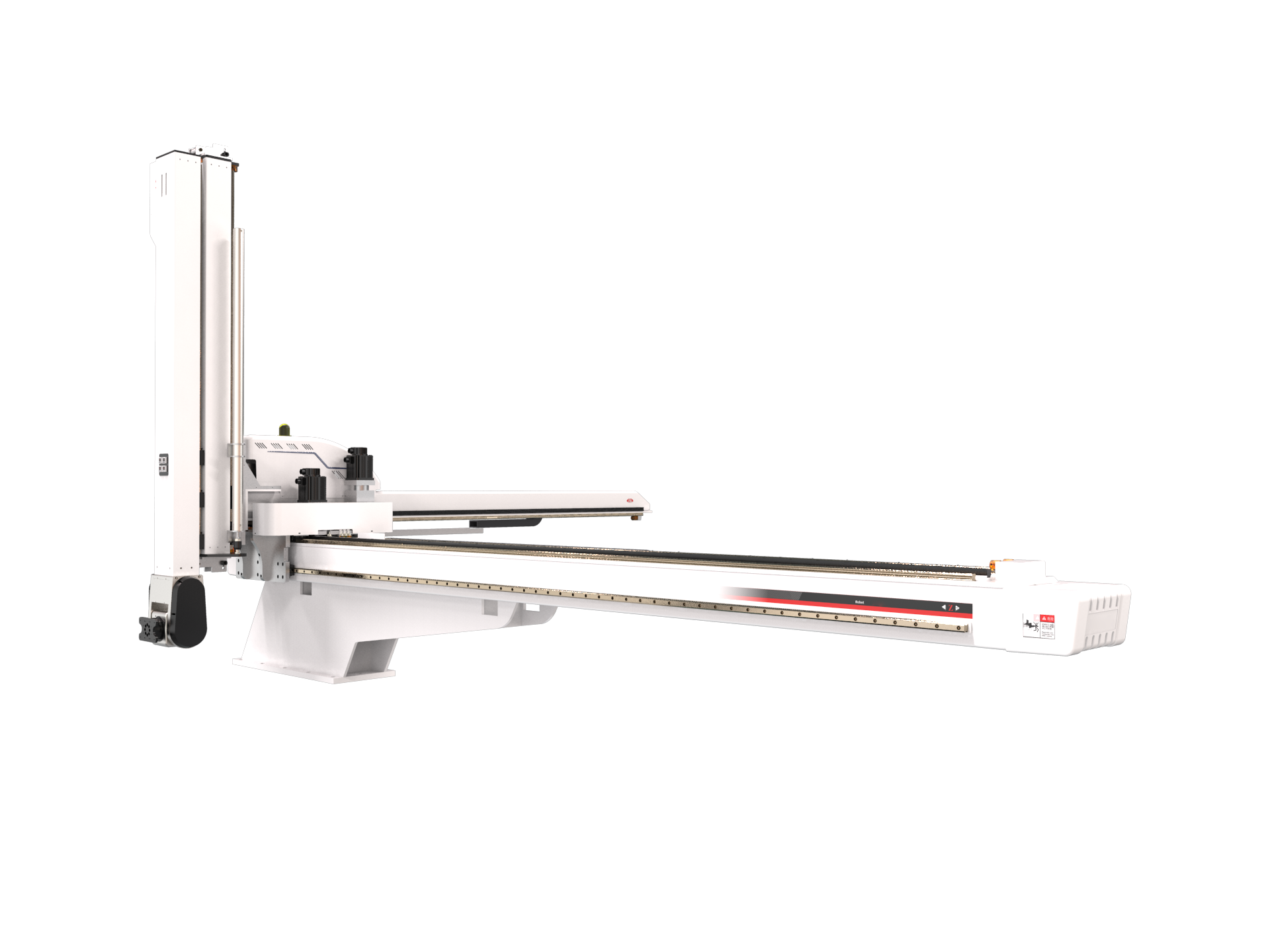

BRTN30WSS5PF/FF FIVE-AXIS SERVO MANIPULATOR

BRTN30WSS5PF/FF is suitable forall types of 2200T-4000T plastic injection molding machines,five-axis AC servo drive,with AC servoaxis on the wrist,the rotation angle of the A-axis:360°,and the rotation angle of the C-axis:180°. It can adjust fixtures freely,with long service life,high accuracy,low failure rate,and simple maintenance. It is mainly used for quick injection or complex angle injection. Especially suitable for long shape products such as automotive products,washing machines,and household appliances.

Five-axis driver and controller integrated system:fewer signal lines,long-distance communication,good expansion performance,strong anti-interference ability,high accuracy of repeated positioning,can simultaneously control multiple axes,simple equipment maintenance,and low failure rate.

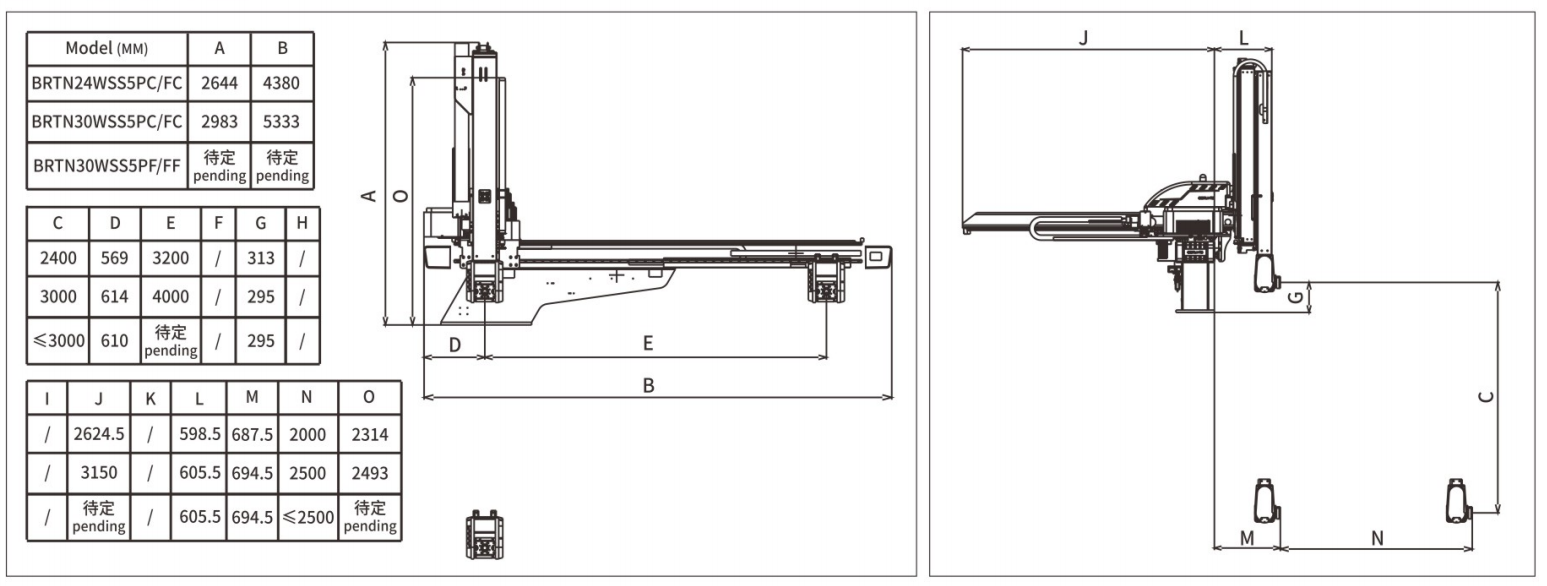

Five-Axis Servo Manipulator Main Specification

Model:	BRTN24WSS5PC/FC	BRTN30WSS5PC/FC	BRTN30WSS5PF/FF
Recommended I.M.M:	1300T-2100T	2200T-4000T	2200T-4000T
Traverser Driven:	AC Servo motor	AC Servo motor	AC Servo motor
Model of EOAT:	Four suctions Two fixtures	Four suctions Two fixtures	Four suctions Two fixtures
Traverse Stroke:	3200mm	4000mm	Traverse total arch length:6meter
Crosswise Stroke:	2000mm	2500mm	≤2500mm
Vertical Stroke:	2400mm	3000mm	≤3000mm
Max.loading:	40kg	60kg	60kg
Dry Take Out Time:	6.69s	9.05s	Undetermined
Dry Cycle Time:	21.4s	36.5s	Undetermined
Air Consumption（NL/cycle）:	15	47	47
Repeatability:	±0.05mm	±0.1mm	±0.1mm
Power source:	5.87kVA	6.11kVA	6.11kVA
Weight:	1550kg	2020kg	Nonstandard
Application scenarios：	Injection molding industry	Injection molding industry	Injection molding industry

No further notice if the specification and appearance are changed due to improvement and other reasons.

Thank you for your understanding.
